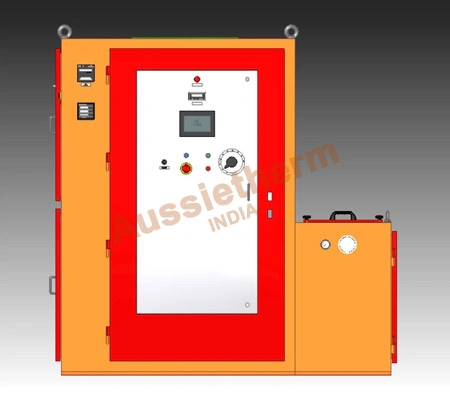

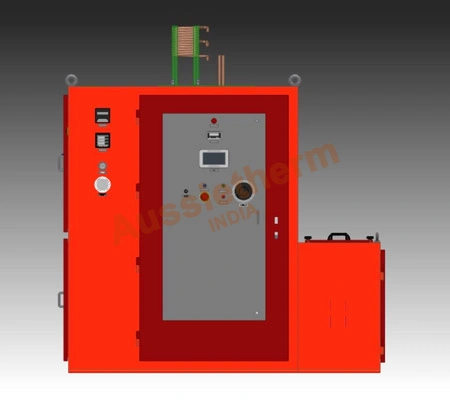

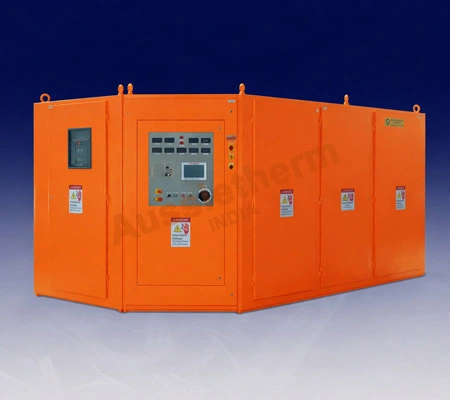

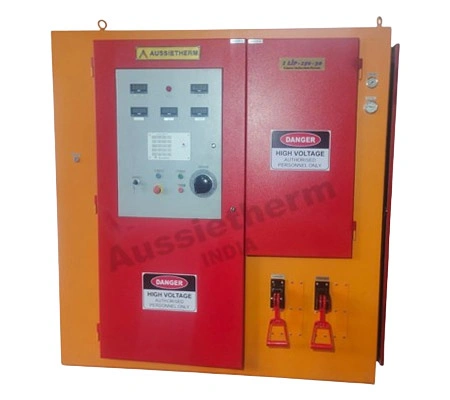

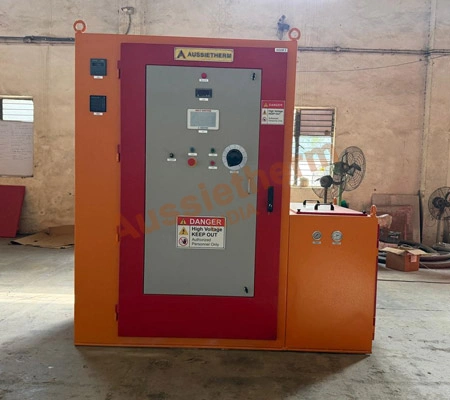

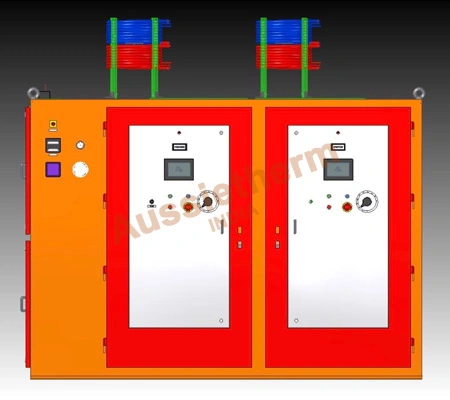

IGBT (Insulated Gate Bipolar Transistor) panels are advanced power electronic solutions designed to deliver efficient, reliable, and high-performance operation in various industrial applications. These panels are integral for power conversion and control, combining the benefits of high switching speeds and low conduction losses. IGBT panels are widely used in induction heating systems, renewable energy applications, motor drives, and power supply units.
At Abhay Induction, our IGBT panels are engineered to meet the highest standards of quality and performance. Built with state-of-the-art technology, they ensure optimal energy efficiency, reduced power loss, and seamless operation even under demanding conditions. Our panels are designed for user-friendly operation, compact installation, and long-lasting durability, making them a preferred choice across industries. Whether for standard applications or custom requirements, our IGBT panels deliver unparalleled reliability and precision.
IGBT Power Supply : From 25KW -20MW
Frequency : 50Hz- 20 KHz
IGBT (Insulated Gate Bipolar Transistor) technology is a key component used in energy-saving induction furnaces, including Aussietherm India products. It enables precise control of power delivery, resulting in highly efficient energy transfer and improved overall performance. Aussietherm induction furnaces employ IGBT, making them among the most energy-efficient solutions available in the global market today.
AUSSIETHERM INDIA is a leading induction furnace manufacturer in India. We specialize in the development and production of state-of-the-art induction heating, melting furnaces, and hardening equipment for various industries including automobiles, metal foundries, and infrastructure.
Our company has been at the forefront of introducing IGBT Technology in power electronics, which not only saves 10-20% energy but is also considered the most advanced and sophisticated technology compared to the commonly used thyristor-based induction equipment in India.
At Aussietherm India we take pride in being at the forefront of technological advancements in the industry. Our commitment to excellence is exemplified by our utilization of IGBT (Insulated Gate Bipolar Transistor) technology in our products. As a leading innovator in the field, we believe that IGBT technology sets us apart from the competition and enables us to deliver the best solutions to our valued customers.
The Insulated Gate Bipolar Transistor (IGBT) is a cutting-edge power semiconductor device that merges the best features of bipolar junction transistors (BJTs) and metal-oxide-semiconductor field-effect transistors (MOSFETs). Widely embraced in the realm of power electronics, IGBTs shine in applications demanding robust voltage and current capabilities, such as motor drives, renewable energy systems, electric vehicles, and industrial equipment.
Benefits of Aussietherm India Hybrid IGBT Inverter Design
Aussietherm India takes a 3-step approach to achieve 7.5% guaranteed energy savings:
Achieving 4% to 5% Energy Savings. Indigenously developed, most advanced & super energy efficient IGBT based inverter technology.
Achieving 1.5% to 2.5% Energy Savings. Electric power loss occurs in circuits and components are controlled by Hybrid Inverter - Voltage Fed Parallel Tank Circuit Design.
Losses caused by power cable supplied from a variable frequency power supply to a load, usually between 2% and 7%. Tank circuit path is reduced less than 1.5 mtr totally. Successfully tested and supplied crucible attached capacitor bank up to 5 mt IMF which saves approx. 2.5% unit/ton more.
We are running trials for implementation of the same technology for up to 15 mt IMF. After a successful trial it will save approx. 2.5% energy more.
Achieving 0.5% to 1.5% Energy Savings. High grade thin sized lamination CRGO sheet to minimise energy and heat loss.

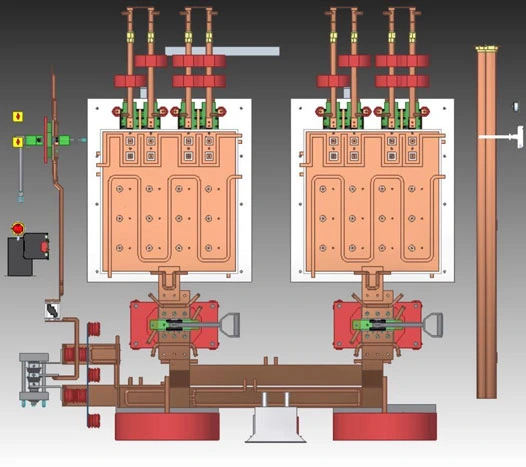

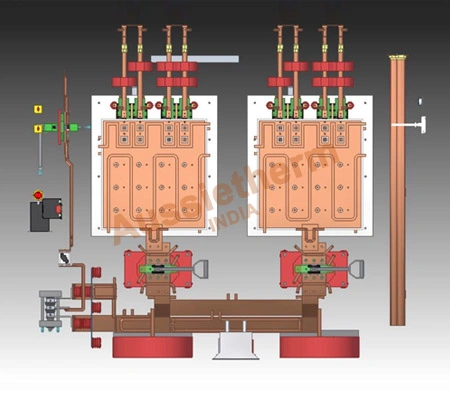

Due to special arrangement of Tank Capacitor Bank, Water Cooled Leads are not required up to 350KW power to minimise power transmission and heat losses.
Well researched and designed thin sized copper busbar which helps to reduce power transmission and heat losses.
M/s Lapp company, well reputed German make, optical fiber cable for higher communication speed and accuracy.
Silver contactor in change over switch. Heavy duty steel frame structure for longer life.
| PARAMETER OF COMPARISON | IGBT | THYRISTOR |
|---|---|---|
| RC Snubber Circuit | Not Required | Required |
| Power Conversion Efficiency | Good | Poor |
| Maximum Operating Frequency | 100kHz | 10kHz |
| Short Circuit Protection | Fast | Slow |
| PARAMETER OF COMPARISON | AUSSIETHERM DESIGN | SERIES DESIGN | PARALLEL DESIGN |
|---|---|---|---|
| Type of Inverter | Voltage Fed Parallel Tank | Voltage Fed Series Tank | Current Fed Parallel Tank |
| Power Control Method | Frequency | Frequency | DC Voltage |
| Power Factor |
0.96 for 6-P 0.97 for 12-P 0.99 for 24-p |
Above 0.955 | Varies with Loading |
| Line Voltage Effect on O/P Power | No Effect | No Effect | Varies with Line Voltage |
| Voltage Stress on Power Devices | Low | Low | Heigh |
| Current Stress on Power Devices | Low | Heigh | Low |
| O/P Short Circuit Rating | Continuous | Few Milliseconds | Few Milliseconds |
Aussietherm India is committed to providing excellent customer support and technical assistance for its products around the world.
Our team of skilled professionals offers comprehensive after-sales services, including installation guidance, operational training, and troubleshooting support. Additionally, Aussietherm maintains a responsive customer service system to address any inquiries, provide spare parts, and offer ongoing maintenance and repair services to ensure the longevity and optimal performance of their induction furnaces and hardening equipment.
At Aussietherm Inida, we specialize in the manufacturing of highly reliable and efficient heating equipment, including induction heating, induction hardening equipment, and induction hardening machines. Our equipment is designed to deliver exceptional performance and meet the diverse needs of industries.

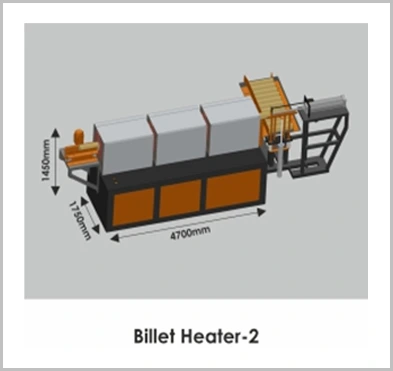

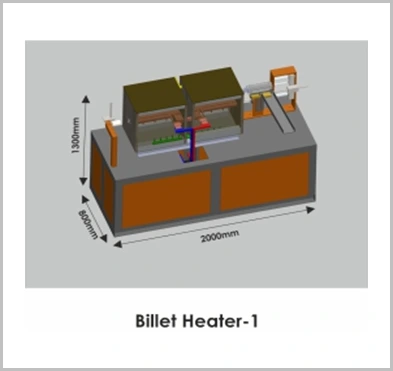

Aussietherm India offers advanced end heating solutions for a wide range of applications, including bars, rods, billets, tubes, agro-equipment, and machine tools. Our state-of-the-art equipment is designed to deliver efficient and precise heating processes, ensuring optimal results for your specific needs.
With our induction heating systems, you can achieve uniform and controlled heating of various workpieces. Whether you need to heat bars, rods, billets, tubes, or components of agro-equipment and machine tools, our solutions provide reliable and consistent performance.
